SSO Server Settings

SSO system setting can be done with system settings UI. SSO wizard provides dynamic configuration and loading without system restart.



SSO system setting wizard

1

On left main menu, select Management

2

Select System -> System Config sub menu.

3

From System Config Wizard, select Single Sign On tab.

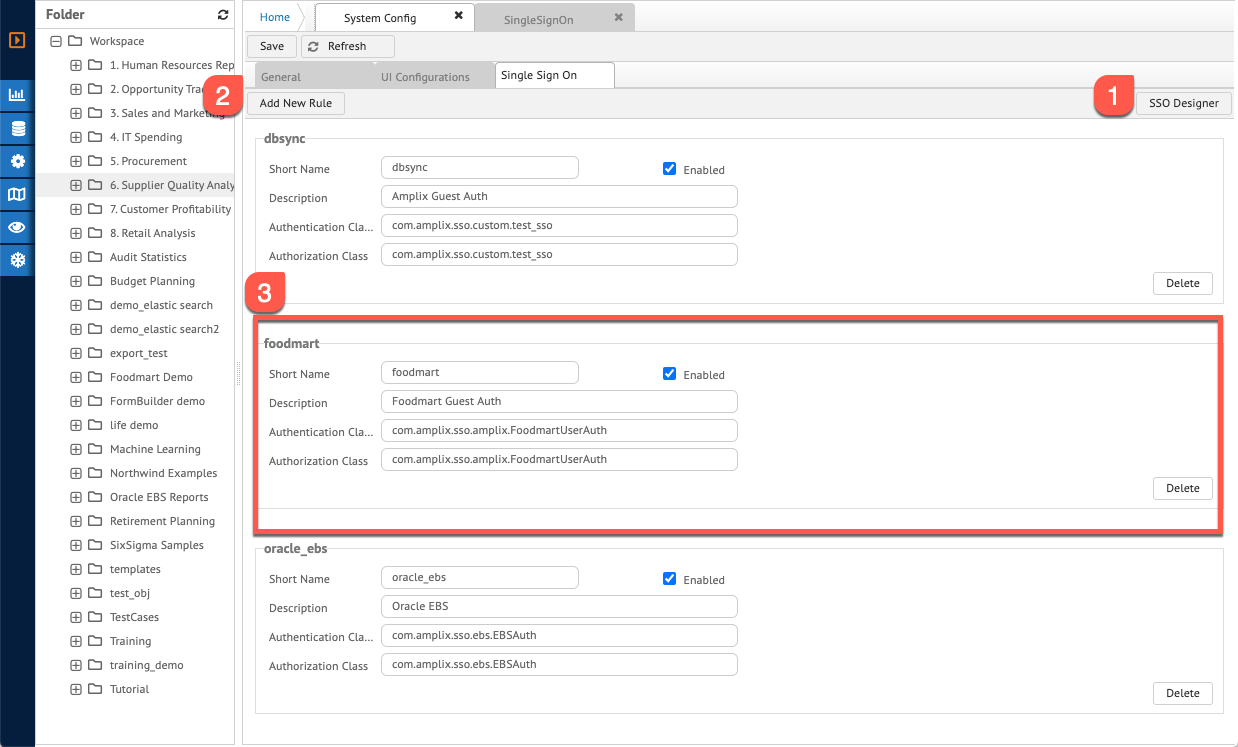

SSO system wizard UI

SSO wizard UI have following structure.

SSO system setting wizard

1

Adding Server side logic for validation, authentication, authorization.

2

Add new SSO module on the list

3

SSO module configuration



Details of SSO module config

Name

Description

Notes

Short Name

Used on sso_custom.js to specify authentication.



Description

Module Description



authentication

Authentication class name in program wizard



authorization

Authorization class name in program wizard





SSO Server Side Logic Programming

Server side logic compiler wizard is shown as bellow. Click on SSO Designer Button on SSO configuration wizard.

SSO server modules

1

SSO server modules toolbar

2

Server module lists

Click on Add Program to create and compile new server-side program.

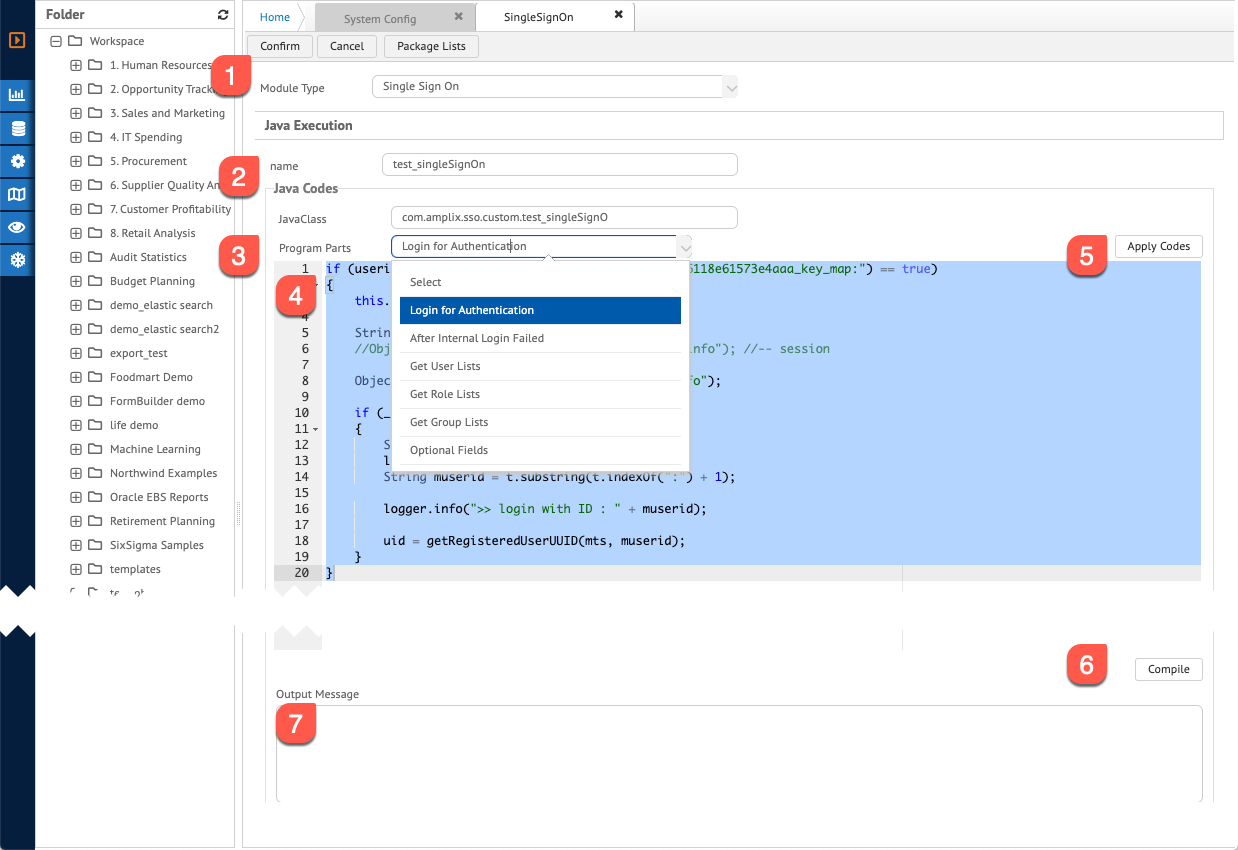

SSO server program wizard

1

Program package type.

2

SSO package and class name.

3

Functional base modules.

4

Functional module implementation editor.

5

Confirm button to apply function implementation editor changes.

6

Dynamic compile and module reloading.

7

Compiler log and error messages.
