비즈니스 보고서 생성 활용
피벗 리포팅
리포트의 피봇은 메져의 위치 및 영역내에서의 메져의 표시 단계를 선택하여 지정할 수 있다.
|

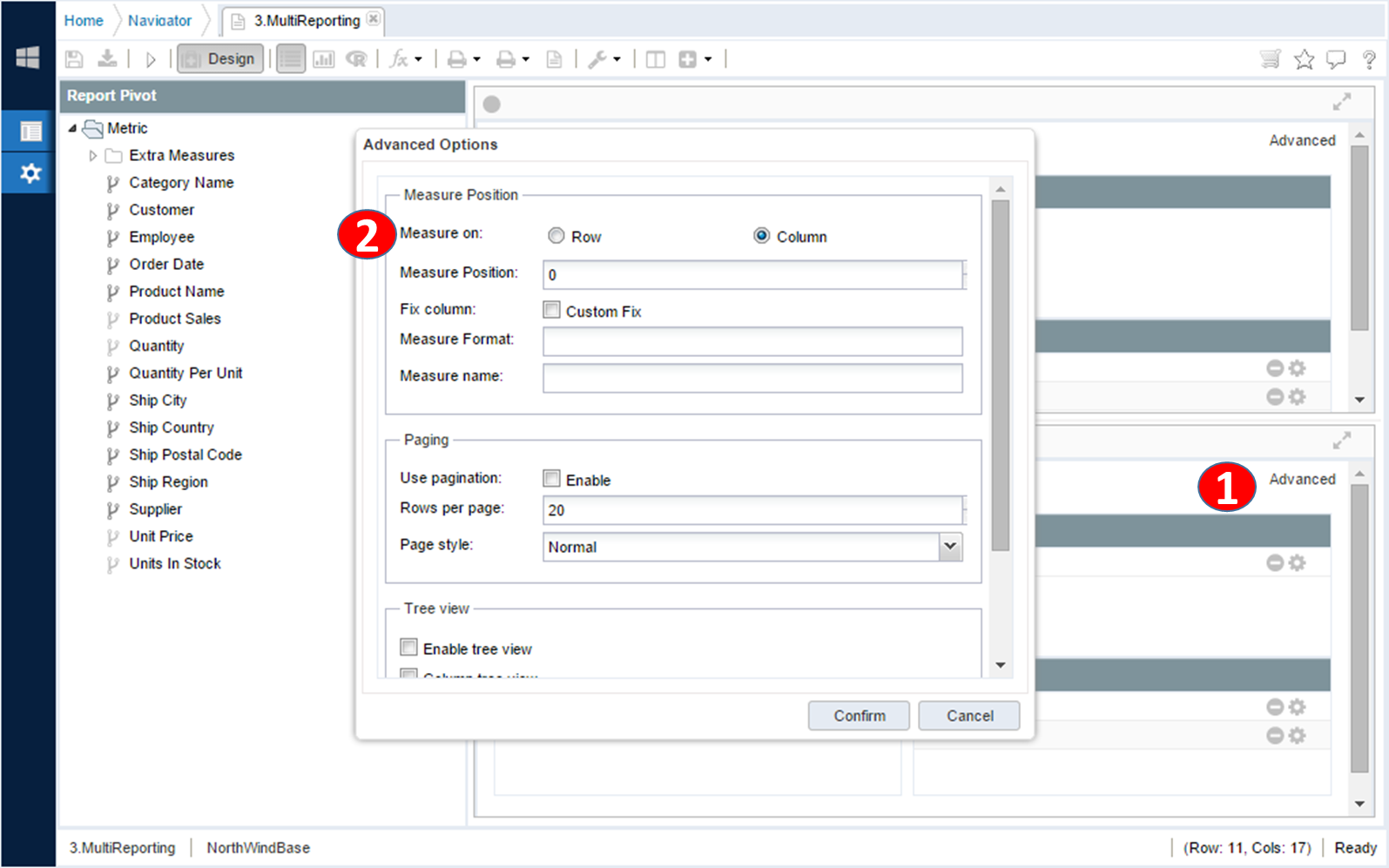

피벗 옵션에서 고급 옵션 버튼을 클릭 |
|
|
|
|
|
1 |
피벗 설정 창에서 고급 옵션 버튼을 클릭한다. |
|
2 |
항목 설정을 수정 한 후 확인 버튼을 클릭한다. |
고급 설정 옵션에서의 설정 항목은 아래와 같다.
|
Config Item |
Description |
Notes |
|
Measure location |
Specify measure results be top column area or row side |
|
|
Measure position |
The step index for row / column area for measure position inside of row / column dimension items. The step value is 0 when right side of fixed rows and increase with left step up. If the measure location is column then 0 if measure is on bottom fixed row and increase with 1 to upside of column dimension item. |
|
|
Fixed column |
Specify grid column fixed index. |
|
|
Use paging |
Enable / disable paging option on bottom |
|
|
Rows per page |
Specify row counts for each page with paging option enabled. |
|
|
Page style |
Page view styles |
|
|
Precision options |
Calculate measure values with high precision numbers. With 1,000,000,000,000 or more detailed decimal precision. |
|
리포트 피벗 디멘젼 설정
피봇 편집 모드에서 디멘젼 및 메져등의 옵션을 분석 큐브에서 지정된 내용을 오버라이드 하여 설정 가능하다. 각 피봇 디멘젼 항목의 설정 버튼을 클릭하여 상세 디멘젼 설정 화면에서 설정 후 변경사항을 리포트에 반영한다. 설정된 사항은 해당 리포트의 개별 쉬트 별로 적용되며 상위 개체의 속성에 영향을 주지 않는다.
|
피봇 편집 모드에서 행 – 열 – 메져에 지정된 피봇 항목의 설정 버튼을 클릭한다. |
|
|
|
|
|
1 |
피벗 항목의 설정 버튼을 클릭한다. |
|
2 |
설정 변경 후 확인 버튼을 클릭한다. |
피봇 항목 설정 마법사의 설정 항목은 다음과 같다.
|
Configuration Item |
Descirption |
Notes |
|
Sort direction |
Overrides default direction to be Ascending / Descending |
|
|
Sort method |
Overrides default option to be alphabetic or numeric sort. |
|
|
Display title |
Override measure / dimension name to be display on item name. |
|
|
Hidden column |
To hide on grid results |
|
|
Time format |
Applied on date format results to change formatted value. |
|
|
Formula |
Sub total / Grand total / min /max etc |
|
|
Formula Title |
Cell title name for formula column |
|
|
Measure format |
For multiple measure, used to define each formatter option. |
|
|
Top located |
Defines formula results grouping on first row or bottom row. |
|
|
Formula grouping |
Grouping formula to separate section. Example) Country-specific subtotals USA NewYork * USA CA Canada Mont Mexico All Subtotal USA Canada Mexico |
|
|
Format |
Specify the numeric format to be applied to the formula |
|
|
Calculate direction |
Specifies whether subtotal values are calculated in the row direction (vertical) or in the column direction (horizontal). In the column direction (horizontal) Jan Feb Apr Mar -> -> Calculation direction |
|
